Value Presentation
Displays a value, optionally with background color or value progression.
Requirements
A value presentation is a variable with the presentation value presentation. To use this presentation, the variable must fulfill the following conditions:
- No set up Variable action
Parameters
Depending on the variable type (Boolean, Integer, Float, String), different parameters are available. The following apply to all of them.
| Parameter | Description |
|---|---|
| Default icon | The icon that is displayed. It can be overwritten by other parameters |
| Default color | The color with which the value is highlighted |
| Prefix | Is written in front of the variable value during formatting (Not available for Boolean) |
| Suffix | Is written after the variable value during formatting (Not available for Boolean) |
Float and Integer
| Parameter | Description |
|---|---|
| Usage type | Use of the variable in summarized presentations. The value does not have a direct effect on the display of the variable, but only on its use in summarized displays. |
| Display type | With "Percentage", the values are displayed as a percentage. This means that the minimum value is displayed as 0 and the maximum value as 100, regardless of their absolute values. Other values are also scaled accordingly. No conversion takes place with "Absolute". |
| Thousands separator | Defines the thousands separator used when formatting the value |
| Minimum value | Minimum value of the variable (only usable if display type = "Percentage") |
| Maximum value | Maximum value of the variable (only usable if display type = "Percentage") |
| Decimal places | The number of decimal places that are displayed when formatting the value (only available for variables of type Float) |
| Decimal separator | Defines the decimal separator used when formatting the value (only available for variables of type Float) |
| Icon | The Icon that is used for the variable |
| Use updated parameters for specific intervals | Activates a list of intervals that can override the formatting in specific value ranges (not usable if display type = "Percentage") |
| Intervals | A list of Intervals for overwriting the formatting in specific value ranges |
Intervals
| Parameters | Description |
|---|---|
| Start of interval | The interval is applied from this value |
| End of interval | The interval is applied up to this value. If there is an interval with a start at this value, the other interval is used for the exact value for End and the defined interval is only used for values that are smaller than the end. |
| Display | If "Formatted value" is selected, the value is formatted with adjusted parameters; if "Constant" is selected, the display is replaced by a constant value. |
| Constant | Defines the text that is to be displayed without further formatting for values within this interval. (only available if display = "Constant") |
| Conversion factor | Before formatting, the value is divided by the conversion factor (only available if display = "Formatted value") |
| Overwrite prefix | If the switch is activated, the prefix defined in the interval is used instead of the prefix of the main configuration (only available if display = "Formatted value") |
| Prefix | Prefix used within the interval (only available if the "Overwrite prefix" switch is active) |
| Overwrite suffix | If the switch is activated, the suffix defined in the interval is used instead of the suffix of the main configuration (only available if display = "Formatted value") |
| Suffix | Suffix used within the interval (only available if the "Overwrite suffix" switch is active) |
| Overwrite decimal places | If the switch is activated, not the decimal places of the main configuration are used, but the decimal places defined in the interval (only available if display = "Formatted value" and variable of type Float) |
| Digits | Decimal places used within the interval (only available if the "Overwrite decimal places" switch is active) |
| Overwrite icon | If the switch is activated, the icon defined in the interval is used instead of the icon of the main configuration |
| Icon | Icon used within the interval (only available if the "Overwrite icon" switch is active) |
| Overwrite color | If the switch is activated, the color defined in the interval is used instead of the color of the main configuration |
| Color | Color used within the interval (only available if the "Overwrite color" switch is active) |
Boolean and String
| Parameters | Description |
|---|---|
| Multiline | (String only) Displays the variable value in multiple lines |
| Options | The individual Options of the display, which allow specific texts, colors and icons to be displayed for different variable values |
Options
| Parameter | Description |
|---|---|
| Value | The option is applied for this variable value |
| Label | Text displayed for this option |
| Overwrite icon | If set, the default icon for this presentation is overwritten if the variable has the value of this option |
| Icon | Icon for the variable if the variable has the value of this option (only available if "Overwrite icon" is set) |
| Color | Color that is used to display this option inside the enumeration |
Value progression
If the Logging is activated for the variable, a preview of the value history is displayed.
Display as legacy profile
If a variable uses the presentation Legacy profile, it is displayed as a value presentation if it fulfills the following conditions:
- Does not fulfill the conditions of one of the following presentations:
When using a variable profile, some parameters of the value display are derived
Use of the variables
The usage type depends on the profile name.
- Temperature for profile name
- ~Temperature
- ~Temperature.Difference
- ~Temperature.Fahrenheit
- ~Temperature.Room
Display type
“Percentage” if suffix ‘%’, otherwise ”Absolute”
Appearance in tile visualization

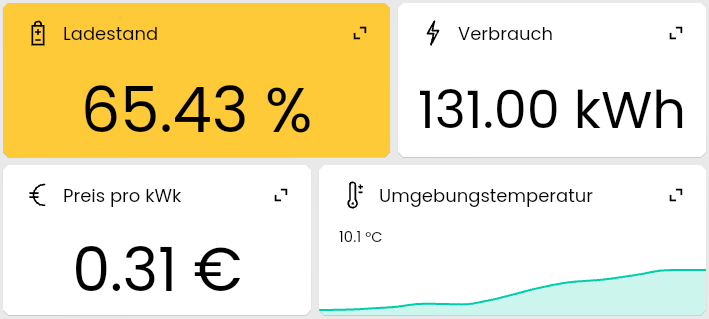

As own tile

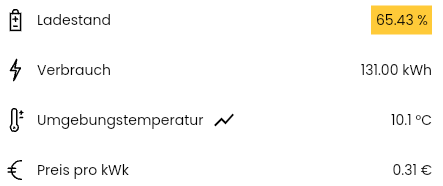

Within a list

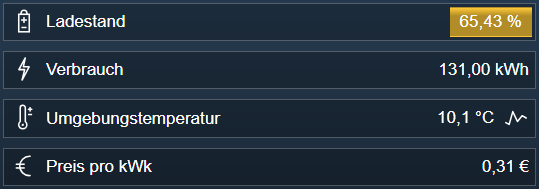

Appearance in the WebFront
No preview of the value history is displayed in the WebFront.
