Shutter
For a Shutter, the degree of opening and optionally the degree of inclination of the slats can be set.
Requirements
A Shutter can be set either as Variable or as Instance.
As a Variable
A variable with the presentation shutter must fulfill the following requirements:
- Integer type
- Configured Variable action
Parameter
| Parameter | Description |
|---|---|
| Usage type | Determines whether the slider is used to control the rotation of slats or the opening degree of a shutter. The Usage Type parameter determines which other parameters are available. |
| Open at | The value at which the shutter is considered open (only for the Open Usage Type) |
| Closed at | The value at which the shutter is considered closed (only for Open Usage Type) |
| Inside at | The value at which the slats are considered to be turned inwards (only for Rotation Usage Type) |
| Outside at | The value at which the slats are considered to be rotated outwards (only for Rotation Usage Type) |
| Rotation | The fixed rotation of the displayed slats (only for Open Usage Type) |
| Maximum Rotation Inside | The maximum inward rotation value of the slats in degrees (only for Rotation Usage Type) |
| Maximum Rotation Outside | The maximum outward rotation value of the slats in degrees (only for Rotation Usage Type) |
| Sun Position | Determines whether and where a sun should be displayed next to the shutter. The height of the sun depends on the time of day. A moon is displayed at night. |
As Instance
An instance can be displayed as a blind if the following child objects are present:
- Position (optional): Variable as described above with the ~Shutter profile
- Degree of rotation (optional): Variable as described above with the ~Lamella profile
At least one optional variable must exist.
The default size of Shutters can be configured separately in the grid settings for variables as "Shutter Variable" and instances as "Shutter"
Display as legacy profile
If a variable uses the presentation Legacy profile, it is displayed as a shutter if one of the following Variable profiles is selected:
- ~Shutter
- ~Lamella
The different profiles correspond to fixed parameter combinations.
~Shutter
- Usage Type: Open
- Open At: 0
- Closed At: 100
- Rotation: -55°
- Sun Position: Right
~Lamella
- Usage Tyoe: Rotation
- Inside At: 0
- Outside At: 100
- Maximum Rotation Inside: -55°
- Maximum Rotation Outside: 55°
- Sun Position: Right
Appearance in Tile Visualization

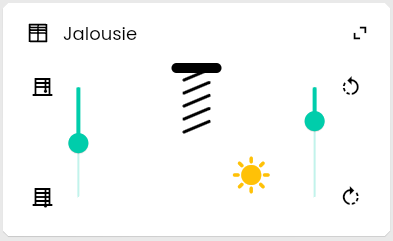

As own Tile

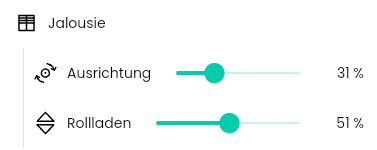

Within a List
In the list view, the visualization falls back to the presentation List.
Appearance in the WebFront
This presentation is not supported by the WebFront. Instead, variables are displayed as Slider and instances are displayed as List.
