Documentation
smart Sensor
Require: IP-Symcon >= 6.0
Description
The smart sensor offers various services in IP-Symcon which, for example, make it possible to read out the different values of the sensors, such as soil moisture or light intensity.
Services

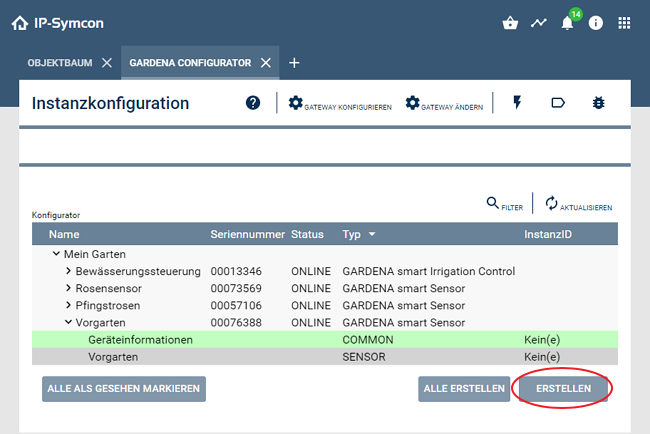

An instance can be created for each service with the configurator.
In the instance configuration, the 'Show last transmitted' switch can be activated to create a variable for each value, if available, that contains the time of the last data transfer.
| Service | Description |
|---|---|
| General | Contains general information about the device |
| Sensor | Represents the values of the sensor |
General
The following status variables are created for this instance
| Variable | Type | Description |
|---|---|---|
| Battery status | String | The status of the device's battery |
| RF Link Level | Integer | The quality of the wireless connection in percent |
| RF Link Status | String | The status of the wireless connection of the device |
Sensor
The following status variables are created for this instance
| Variable | Type | Description |
|---|---|---|
| Soil humidity | Integer | The soil moisture measured by the sensor in percent |
| Soil temperature | Float | The soil temperature measured by the sensor in °C |
| Light intensity | Float | The illuminance measured by the sensor in lux |
| Ambient temperature | Float | The ambient temperature measured by the sensor in °C |
