Documentation
QrCode
Require: IP-Symcon >= 7.0
Creates a QR Code.
parameter
| parameter | description |
|---|---|
| caption (optional) | (default: "") visible caption |
| center (optional) | (default: false) If true the QR Code is displayed in the middle, otherwise left-aligned |
| description | (default: true) If true, the text contained in the QR Code will be displayed below it |
| name (optional) | name of the QR Code/property to set |
| source | The string encoded in the QR Code |
| type | QrCode |
| visible (optional) | (default: true) If true the QR Code is visible, otherwise it is invisible |

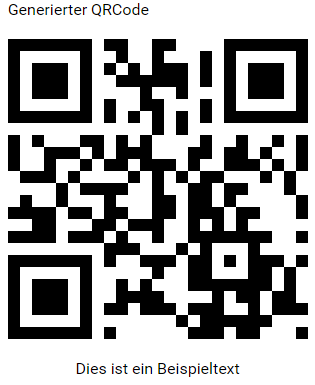

example
{ "type": "QrCode", "name": "Example", "caption": "Example text", "source": "An example text" }
