Inputs

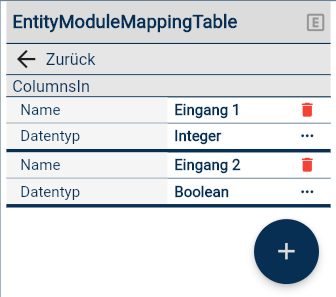

To define the inputs of a mapping module, press the menu button of the Inputs property of your mapping module. The definition of the inputs is loaded and displayed:

To configure an input of the mapping module:
- Add a new entry to the selection using +.
- Select the entries one after the other and edit their properties (see below).
- When you have defined all inputs, exit the editor by clicking the Back button.
The following options are available
Name | Description |
---|---|
Name | Name of the input |
Data type | Defines the data type of the input, the following options are available: Boolean, Integer, Float, String |
